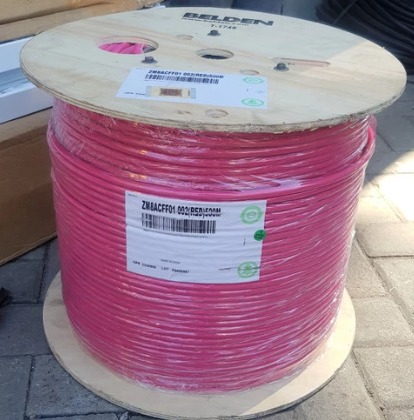

Kabel Belden ZM8ACFF01 1Px18AWG MGT/XLP/OS/LSZH Fire resistance cable Shielded TC Drain wire
Rp12.348.750
Cable Diagram
Cable Part Code* ZM8ACFF01
Cable Description 1Px18AWG MGT/XLP/OS/LSZH Fire resistance cable
Cable References Standards BS EN 50288‐7, IEC 60332‐1‐2,IEC 60332‐3C, IEC 60331‐21, BS 6387 CWZ
Conductor Material Bare Copper
Conductor Size (AWG) 18
Conductor Standard BS EN 50288‐7 & IEC 60228 ‐Class 2
Fire Protection Barrier Mica Glass Tape (MGT)
No. of Cores / Pairs / Triads 1 Pair
Insulation Material XLP
Insulation Color Code & Identification Blue * Black
Shielded/Unshielded Overall foil Shield with TC drain wire
Outer Jacket/Sheath Material
Outer Jacket Material LSZH
Nom. Overall Diameter (mm) 8.5
Physical/Mechanical Properties
Temperature Rating (°C) ‐30°C To +90°C
Oil Resistance Yes
UV Resistance Yes
Flame / Fire Retardancy IEC 60332‐1‐2,IEC 60332‐3C
Fire Resistance & Circuit Integrity IEC 60331‐21, BS 6387 CWZ
Smoke Density as per IEC 61034‐2 (Min. Light Transmittance %) 60%
Halogen Acid Gas as per IEC 60754‐1 (%) 0.50%
pH Content as per IEC 60754‐2 ≥ 4.3
Conductivity as per IEC 60754‐2 (µS/mm) ≤ 10
Nom. Cable weight (kg/km) 79.1
Electrical Properties
Voltage Rating (V) 500
Max. Conductor Resistance @ 20°C (Ω/km) 21.83
Max Mutual Capacitance Core to Core @ 1KHz (nF/km) < 150
Max. Inductance (µH/m) ≦ 1
Max. Inductance to Resistance Ratio L/R (µH/Ω) < 25
