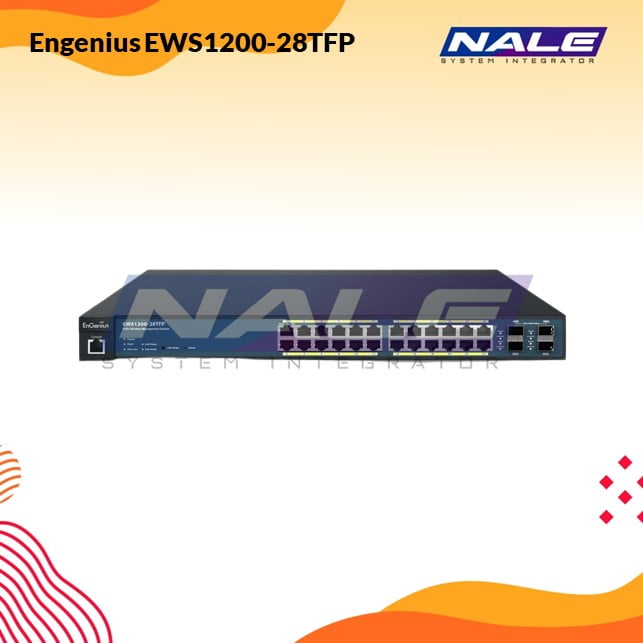

Engenius 24-Port Managed Gigabit 410W PoE+ Switch (EWS1200-28TFP)

Technical Specifications

• Port Standards
  802.3 10Base-T Ethernet
  802.3u 100Base-TX Ethernet
  802.3ab 10000Base-T Ethernet
  802.3x Full-Duplex Flow Control
• Network Ports
  24 10/100/1000 Mbps Ports
  4 10/100/1000 Mbps SFP Ports
  1 RJ45 Console Port
• Performance
  Switching Capacity: 56 Gbps
  Forwarding Mode: Store-and-Forward
  SDRAM: 256 MB
  Flash Memory: 32 MB
  Packet Buffer Memory: 512 KB
  Address Database Size: 8,000 MAC Addresses
• PoE Capability
  PoE Standard: Ports 1~24 Support IEEE 802.3at/af
  PoE Capable Ports: All Gigabit Ethernet Ports/Up to 30 W
• PoE Budget
  410 W
• Power Source
  100 ~ 240VAC, 50-60Hz
  6.5A

Software Features

• Layer 2 Features
  802.3ad Link Aggregation
  – Maximum of 8 Groups/8 Ports per Group
• Port Mirroring
  – One-to-One
  – Many-to-One
• Spanning Tree Protocol
  – 802.1D Spanning Tree Protocol (STP)
  – 802.1w Rapid Spanning Tree Protocol (RSTP)
  – 802.1s Multiple Spanning Tree Protocol (MSTP)
• MAC Address Table
  – 8K Entries
• Static MAC Address
  – 256 Entries
• 802.1ab Link Layer Discovery Protocol
• IGMP Snooping
  – IGMP v1/v2/v3 Snooping
  – Supports 4094 IGMP Groups
  – IGMP per VLAN
  – IGMP Snooping Query
  – IGMP Snooping Fast Leave
• MLD Snooping
  – MDL Snooping v1/v2
  – Supports 4,094 MLD Groups
  – IGMP per VLAN
• Jumbo Frame
  – Up to 9,216 bytes
• 802.3x Flow Control
• 802.3az Energy Efficient Ethernet
• VLAN
  802.1Q Support
• VLAN Group
  – Max 4,094 Static VLAN Groups
• Voice VLAN
• QoS
  802.1p Quality of Service
  – 8 Queues per Port
• Queue Handling
  – Strict
  – Weighted Round Robin (WRR)
• QoS Based on:
  – 802.1p Priority
  – DSCP
• Bandwidth Control
  – Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
• Broadcast/Unknown Multicast/Unknown Unicast Storm Control
• Access Control List (ACL)
  Layer 2/3
  – Supports Maximum 50 Entries (ACL)
  – Supports Maximum 256 Entries (ACE)
• ACL Based on:
  – MAC Address
  – VLAN ID
  – 802.1p Priority
  – Ethertype
  – IP Address
  – Protocol Type
  – DSCP

 Neutron_Series_Switches_DS
