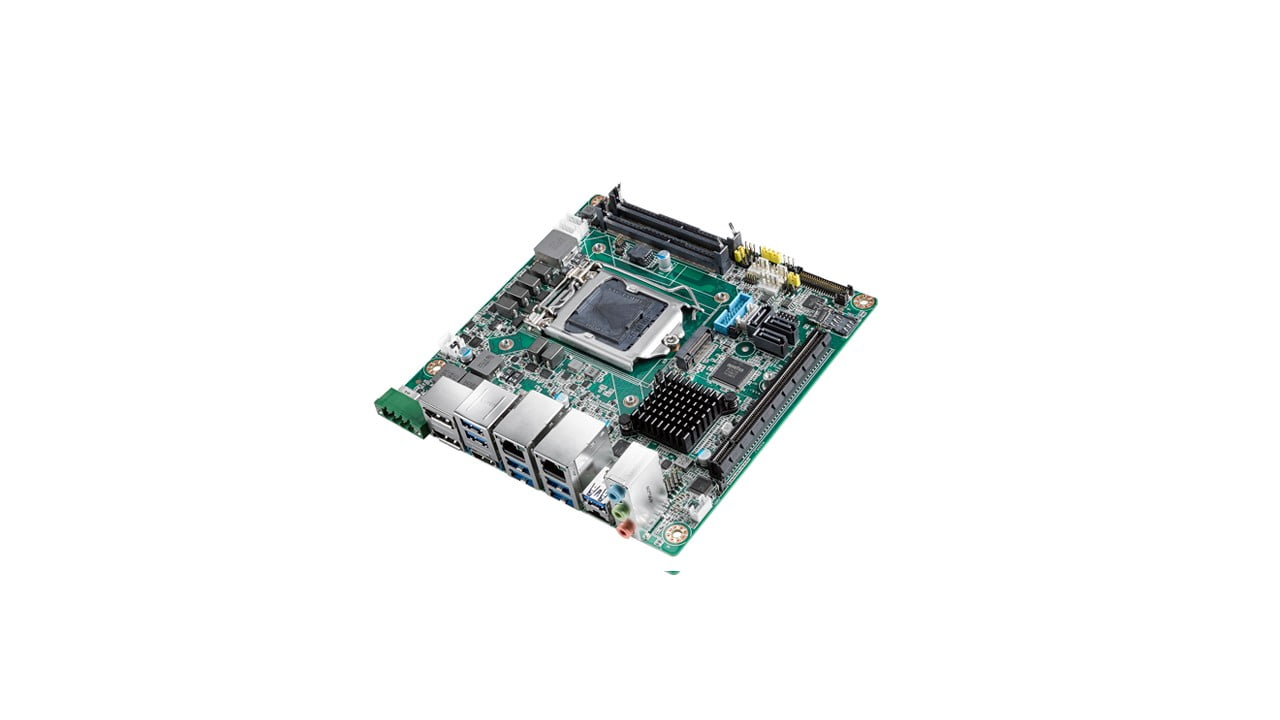

Advantech miniITX LGA1151 DC-12V DP/HDMI/PCIex16/2GbE,RoHS (AIMB-276G2-01A1E)
Deskripsi
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI: 4096×2160@60Hz / DP++: 4096×2304@60Hz |
| Display | Graphic Engine | Intel HD Graphic |
| Display | LVDS | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz |
| Display | Multiple Display | Triple |
| Display | Video Interface | DP+DP+LVDS(or eDP), DP+DP+HDMI, DP+HDMI+LVDS(or eDP) |
| I/O | COM Port | 2 (1xRS-232, 1xRS-232/422/485) |
| I/O | GPIO | 8-bit GPIO |
| I/O | TPM | Optional |
| I/O | USB2.0 | 4 |
| I/O | USB3.0 | 10 |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM |
| Memory | Technology | DDR4 2666MHz SO-DIMM |
| Processor | BIOS | AMI EFI 128Mbit |
| Processor | Chipset | Intel Q370 |
| Processor | Core Number | 2 / 4 / 6 |
| Processor | CPU | Intel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151) |
| Processor | CPU TDP | 65W/54W/35W |
| Processor | Frequency | 2.1~3.7 GHz |
| Processor | L3 Cache | 2 ~ 8MB |
| Storage | SATA | 3 x SATAIII |
| Operating System | Linux | Yes |
| Operating System | Microsoft Windows | Windows 10 (64-bit) |
| Operating System | SUSIAccess | Yes |
| Environment | Non-Operational Temperature | -40~ 85° C |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Vibration Resistance | 3.5 Grms (non OP) |
| Power | Connector | DC 12V Jack/ 4-pin with ATX12V |
| Power | Power Type | Single 12V DC power input |
| Ethernet | Connector | RJ45 x 2 |
| Ethernet | Controller | GbE1: Intel I219LM, GbE2: Intel I211 |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio |
| Audio | CODEC | Realtek ALC888S |
| Audio | Connector | 3 (Line-in, Line out, Mic-in) |
| Watchdog Timer | WatchDog Timer | Yes |
| Certification | EMC | CE/FCC Class B |
| Expansion | PCI Express x 16 | 1 |
| Expansion | Slot Type | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230) |
| Expansion | Slots | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex16 |
| Physical | Construction | with CPU cooler design |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package |
