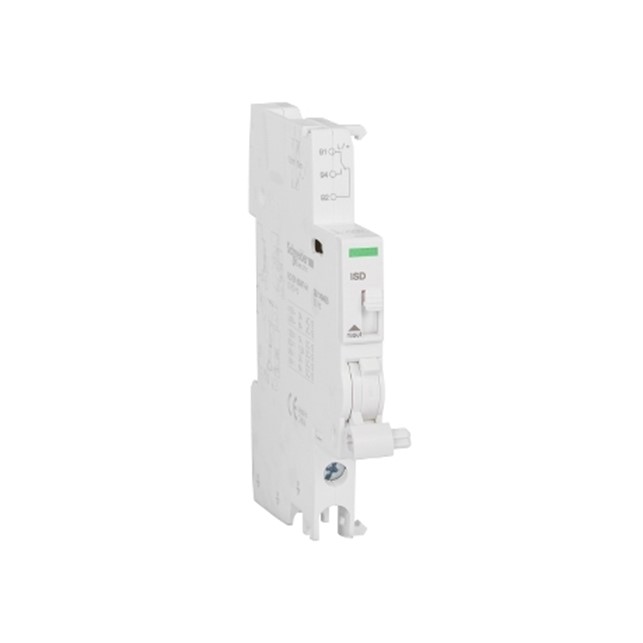

Acti 9 – Auxiliary contact iOF/SD+OF – 2OC – AC/DC
Rp650.649
SKU:
A9A26929
Kategori: Contactor MCB Breaker & Relay, Electrical, Schneider
Deskripsi
range of product | Acti9 |
---|---|
Product or component type | Double OC or fault contact |
device short name | IOF/SD+OF |
Signal contacts composition | 2 C/O |
[In] rated current | DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC AC-12 3 A at 415 V, AC 50/60 Hz AC-12 6 A at 240 V, AC 50/60 Hz |
9 mm pitches | 1 |
[Ui] rated insulation voltage | 500 V |
---|---|
[Uimp] rated impulse withstand voltage | 4 kV |
Local signalling | Mechanical indicator |
Mounting mode | Fixed |
Mounting support | DIN rail |
Comb busbar and distribution block compatibility | NO |
Height | 90 mm |
Width | 9 mm |
Depth | 73 mm |
Product weight | 43 g |
Colour | White |
Connections – terminals | Screw clamp terminal (top and bottom) 2 cable(s) 2.5 mm² – rigid Screw clamp terminal (top and bottom) 2 cable(s) 1.5 mm² – flexible with ferrule Screw clamp terminal (top and bottom) 1 cable(s) 0.5…2.5 mm² – flexible Screw clamp terminal (top and bottom) 1 cable(s) 1…4 mm² – rigid |
Wire stripping length | 10 mm |
Tightening torque | 1 N.m |
